8MP CVI TVI 5MP AHD CVBS Camera Tester with 4 inch TFT Screen S213
8MP CVI TVI 5MP AHD CVBS Camera Tester with 4 inch TFT Screen S213
【IP Camera Tester & DMM】Network camera tester support max 8MP 4K H.265/H.264 IP POE Camera test,and also support Digital Multi-meter function.Tests of AC/DC voltage, AC/DC current, resistance, capacitance, diode voltage drop, and continuity test.Powerful network tools to help you detect and set various network parameters.
【Coaxial HD camera test】Support max 8MP TVI CVI camera, 5MP AHD camera, CVBS camera test.PAL/NTSC video test signal,PTZ control and call OSD menu. RS485 control, Baud 150-19200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc.
【Multi-function IPC tester】Automatic detect HK&DH camera,Live Support view, snapshots, records, digital zoom. Compatible with IPC protocol ONVIF, RTSP, RTP,multi-brand IPC test.Support PoE IEEE802.3af/at 48V, maximum power 25.5W, PD,POE test and RJ45 network cable test,the camera tester tool will make your installation process simple and efficient.
【More parameters tester】Model:T73 4 inch TFT screen 800x480 resolution.13 keys of the main keyboard, and 45 keys of the flip keyboard.Support online update and local update.LED light,Dual Ethernet port 10/100/1000Mbps.Audio input.Cemera tester Dimension/Net weight 7.48x4.53x1.46inch(1.19lbs).
【Power & Quality Assurance】The security camera tester is powered by a 7.4V/3000mAh/22.2Wh lithium-ion battery and can operate for up to 8 hours after 3-4 hours of charging.DC 12V/2A output.We tested every cctv camera tester before we sent it to the Amazon warehouse, to ensure that you will not receive defective products. We offer 24h technical support and 1 year warranty.
Model: T73
Display 4”IPS TFT screen, 800*480 resolution
Video Mode
CVBS:1 channel BNC input, NTSC/PAL (Auto adapt)
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P, Samsung, Panasonic etc
IP camera test:
4K/H.265/H.264, IP Discovery/Quick Ovif/IPC test /RTSP play /Client APK.
Rapid Video:Auto view the video, save snapshot, record video.
Automatic detect HK and DH camera .
48V PoE power output, max 25.5W
Coaxial HD camera test:
8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, PTZ control/ call OSD menu
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, PTZ control / call OSD menu
5MP AHD test, 2560x1944P 12.5/20 FPS, PTZ control / call OSD menu
Auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.
Others
Power: Output DC12V/2A power out.
Battery: Built-in Lithium ion battery 7.4 V / 3000mAh.
After charging 3-4 hours, normal working 8 h.
Network tool: IP scan, DHCP server, Ping test.
language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech.
Working Temperature: -10~50℃, Humidity 30%-90%.
Dimension/Net Weight：190x115x37mm(7.48x4.53x1.46inch)/ 0.54KG (1.19lbs)

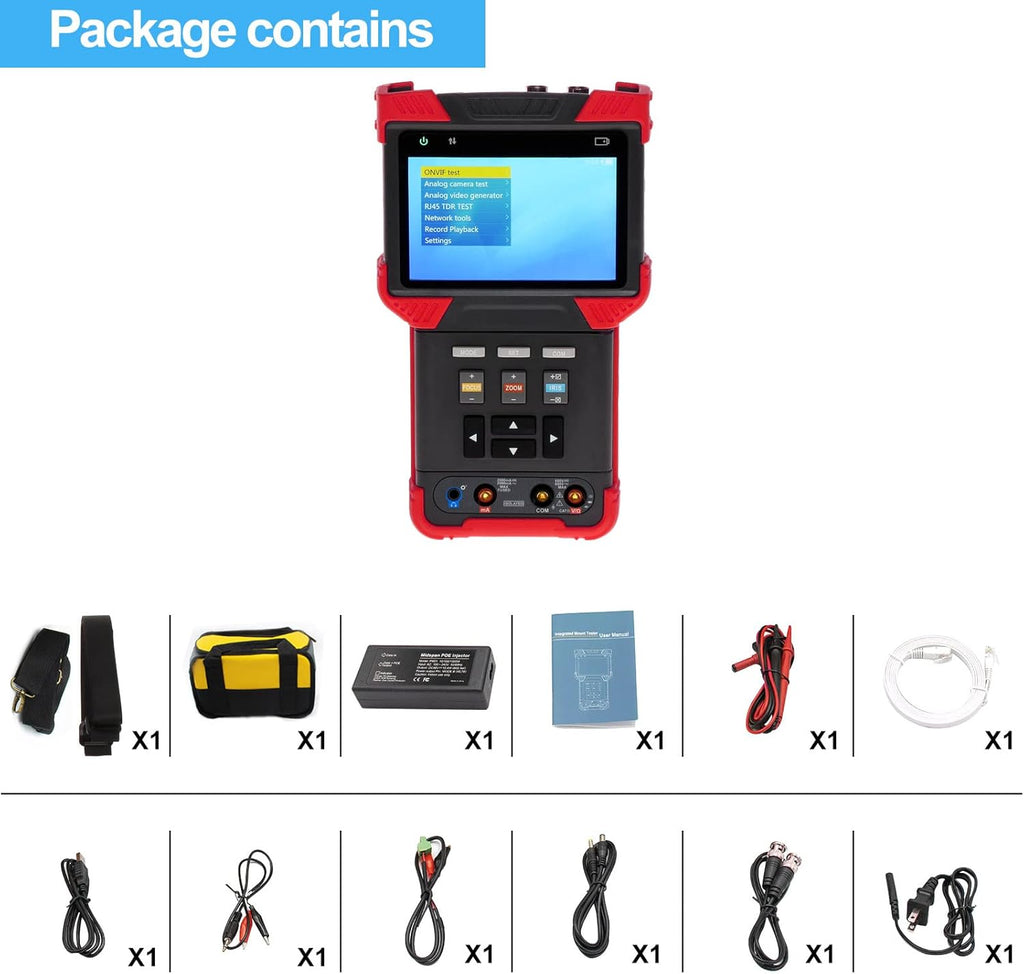

Package
1x IP Camera Tester
1x Network Cable/1x Coaxial Cable/1x Audio Cable/1x RS485 Cable/1x USB Cable/1x DC Power cable/1x PoE Adapter&Cable
1x Tool bag
2x Lanyard
1x Multi-meter Probes
1x User Manual
